TECHNICAL SPECIFICATIONS

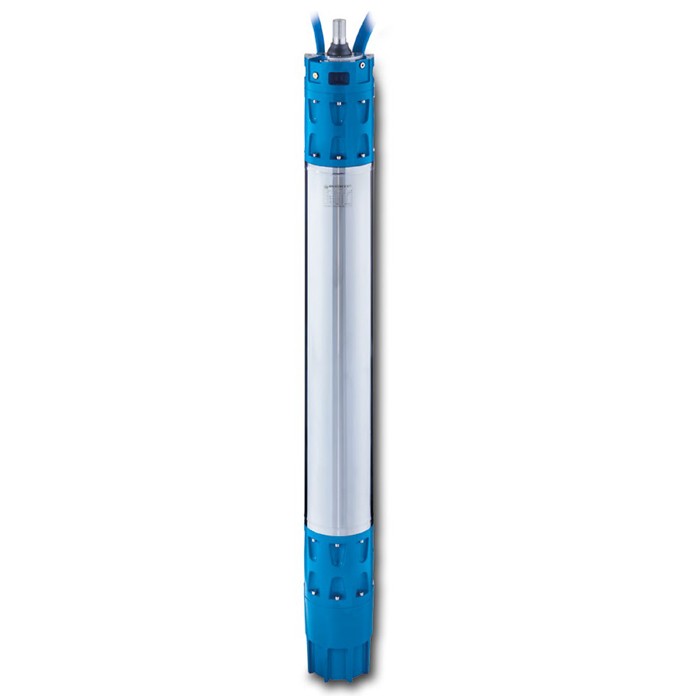

– 8” water filled rewindable submersible motor with addition of propylene glycol.
– 8” nichel-plated cast iron coupling flange.
– 8” terminal of motor shaft according to standard NEMA in Duplex®.
– NEMA standard couplings.
– Outer shell in AISI 304.
– Stud-bolt, washers and nuts in AISI 304.
– Axial load: 45000N – 60000N.
– Trust bearing: Kingsbury type.
– Flat cable 4 mt DRINCABLE® (approved by ACS and WRAS).
– Three-phase power: 22 kW – 93 kW.
– Standard winding for ambient temperature max. 35°C.
– Winding with insulation in PE2/PA for ambient temperature max. 55°C.
– Minimum cooling speed: 22 kW – 52 kW = 0,2m/s.
55 kW – 93 kW = 0,5m/s.
– Protection IP68.
– Start: S.D. (Y/Æ) with cables position at 90°.
– Three-phase voltages: 220V-415V/50Hz, 460V/60Hz.
– Voltage tolerance: ± 10%.
– Number of starts per hour: max. 20/h.
– Installation: vertical/horizontal.
– Rotation: clockwise/counterclockwise.
– Temperature sensor PT100 to order separately.
– Special voltages on request.
– Special mechanical seals on request.
