TECHNICAL SPECIFICATIONS
FEATURES
– Construction in stainless steel AISI 304.
– Discharge and suction outlet: stainless steel AISI 304.
– Non-return valve: stainless steel AISI 304.
– Impellers and diffusers: stainless steel AISI 304.
– Pump shaft: stainless steel AISI 431.
– Shaft bearings of high quality on low friction and high wear resistance. – Grid/strainer in stainless steel AISI 304.
– Smooth safety hook.
– Coupling flange according to standards NEMA.
– Construction in stainless steel AISI 304.
– Discharge and suction outlet: stainless steel AISI 304.
– Non-return valve: stainless steel AISI 304.
– Impellers and diffusers: stainless steel AISI 304.
– Pump shaft: stainless steel AISI 431.
– Shaft bearings of high quality on low friction and high wear resistance. – Grid/strainer in stainless steel AISI 304.
– Smooth safety hook.
– Coupling flange according to standards NEMA.
APPLICATIONS
– Suction from deep wells.
– Sprinkler system for agricultural uses.
– Water supplying for civil and industrial applications. – Fire-fighting systems.
– Drainage and abstraction of waters from mines.
PERFORMANCES

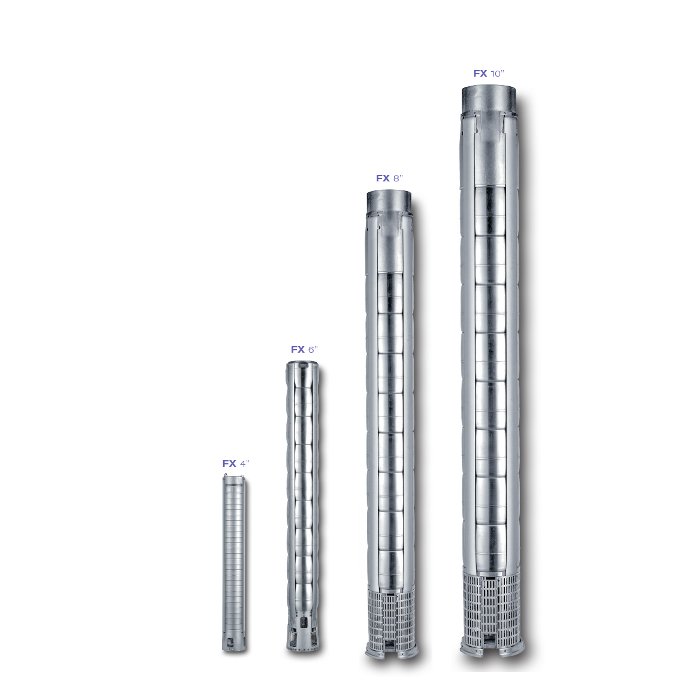

4” – Flow rate max. 18 m3/h, Max. manometric Head: 285mt.
,6” – Flow rate max. 78 m3/h, Max. manometric Head: 433mt.
8” – Flow rate max. 120 m3/h, Max. manometric Head: 412mt.
10” – Flow rate max. 280 m3/h, Max. manometric Head: 502mt.
4” – Flow rate max. 18 m3/h, Max. manometric Head: 285mt.
,6” – Flow rate max. 78 m3/h, Max. manometric Head: 433mt.
8” – Flow rate max. 120 m3/h, Max. manometric Head: 412mt.
10” – Flow rate max. 280 m3/h, Max. manometric Head: 502mt.
LIMITS OF USE
– Max. liquid temperature: 30°C
– Max. sand content: 50 g/m3.
